Formation

Fly a lead and two wingmen in a V, every aircraft controlled by the policy. The lead holds an altitude and a heading that follows a patrol route, and each wingman holds a slot fixed in the lead's frame. Because the lead is learned too, each wingman's reference is a co-player rather than a script; the team shares one cost, and a collision between any two aircraft trips all three. The action is the three aircraft's controls, the lead's first.

import target_gym as tg

env, params = tg.make("formation")
Action space Box((9,)), all actions in [-1, 1]
Observation space Box((74,))
Tracked variable(s) lead altitude (m), wingman 0 slot error (m), wingman 1 slot error (m)
Episode length 200 steps of 1 s (3.33 min)
Cite as formation-v2
Physics contract

Action space

Actions are normalised to [-1, 1] and mapped onto the plant's real actuator range inside the environment.

# meaning min max
0 lead power -1 1
1 lead stick -1 1
2 lead aileron -1 1
3 wingman 0 power -1 1
4 wingman 0 stick -1 1
5 wingman 0 aileron -1 1
6 wingman 1 power -1 1
7 wingman 1 stick -1 1
8 wingman 1 aileron -1 1

Observation space

74 values in the plant's own units. The space declares no bounds (it spans the float32 range), so scale them before training. The reward scores obs[2] against obs[10], obs[46] against obs[47], obs[72] against obs[73].

# meaning
0-14 the lead's observation as in plane3d_heading, its target heading being the one the route commands this step
15 the route's current turn rate (rad per step)
16-18 wingman 0's offset from its slot in the lead's frame: back, right, up (m)
19-21 wingman 1's offset from its slot, likewise (m)
22-47 wingman 0's observation, as in patrol
48-73 wingman 1's observation, as in patrol

Rewards

One team cost: the lead's squared altitude and heading errors against its route, plus each wingman's squared slot error and heading misalignment with the lead, each in units of its instrument's resolution (1 m, 0.5 deg, 3 m, 0.5 deg). Every aircraft receives the same reward.

Every environment in this suite scores on one contract. The reward is minus the sum of three non-negative costs, -(tracking_cost + running_cost + failure_cost). The running cost charges consumption and the failure cost charges trips out of the operating envelope. The reward is never positive, and its scale differs by orders of magnitude between plants. Some plants are priced in dollars or euros and the rest are dimensionless; the per-plant summary says which. See Reward shaping for how each cost is built.

Starting state

reset samples the initial condition and the target; state has 11 fields.

Episode end

Termination. None by default. Leaving the operating envelope trips the plant: the step that leaves it is charged the trip cost and sets info["tripped"] and info["trip_cost"], and the plant restarts as reset_env would while the episode clock keeps running. Episodic use is optional: with continuing = False the plant is lost and terminated is raised on that step instead. The formation trips when any aircraft leaves the altitude band, any two aircraft come within min_separation (25 m), or any wingman is max_slot_error (1500 m) from its slot. The whole formation restarts. See Reward shaping.

Truncation. After 200 steps.

Baselines

Recorded over 10 seeds of the 200-step episode (see Baseline results). The reward is a cost, so a return closer to zero is better.

controller mean return cost per step
PID -5.838e+04 291.9
MPC -5321 26.61

The MPC beats the PID on 10 of 10 seeds and does not trip the plant on any of them.

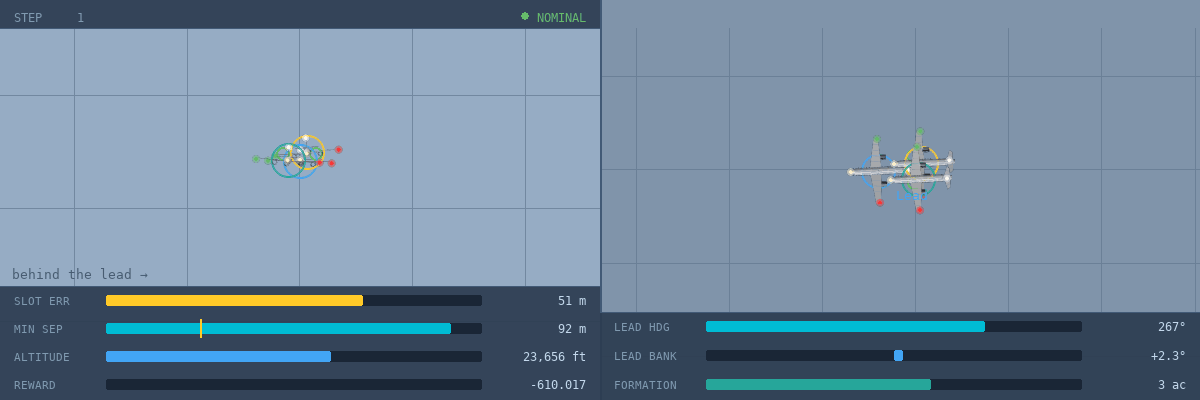

The PID flies the lead seat as a formation lead: the 3D heading task's course hold and pitch on height, aimed at the heading the route commands, at a set power, so its wingmen have a steady reference. Each wingman seat flies the patrol's formation hold. The MPC slot is the patrol oracle's design applied to the whole formation: the patrol's lead autopilot in the lead seat and its twin-autopilot law in each wingman seat, with one residual planner over every seat on the team cost.

Arguments

The scored configuration, which tg.make returns. A keyword argument changes one field, as in tg.make("formation", max_steps_in_episode=...).

parameter value unit
delta_t 1 s
max_steps_in_episode 200 steps
gravity 9.81 m/s^2
initial_mass 73500 kg
thrust_output_at_sea_level 240000 N
air_density_at_sea_level 1.225 kg/m^3
frontal_surface 12.6 m^2
wings_surface 122.6 m^2
C_x0 0.095 -
C_z0 0.9 -
initial_fuel_quantity 19088 kg
specific_fuel_consumption 0.0175 kg/(kN.s)
power_response_rate 0.05 1/s
stick_response_rate 0.9 1/s
aileron_response_rate 0.9 1/s
aspect_ratio 9.48 -
aileron_effectiveness 0.4 -
cl_alpha 0.08786 1/deg
cl0 0.2 -
cd0 0.02 -
k 0.045 -
aoa_stall 15 deg
CL_max 1.5 -
CL_min -1 -
aoa_stall_width 3 deg
M_crit 0.8 -
k_shock_stall 4 -
shock_stall_floor 0.25 -
k_drag 5 -
I 9000000 kg.m^2
I_x 2500000 kg.m^2
moment_arm_stabilizer 15 m
moment_arm_wings 1.5 m
stabilizer_surface 27 m^2
elevator_surface 10 m^2
wingspan 35.8 m
aileron_surface 6 m^2
moment_arm_aileron 14 m
C_lp -0.4 -
min_alt 0 m
max_alt 12191.4 m
precision_floor 1 m
heading_precision_floor 0.0087 rad
position_precision_floor 3 m
reward_version 2 -
e_floor_altitude 1 m
e_tol_altitude 0 m
e_floor_heading 0.0087 rad
e_floor_path 3 m
tracking_exponent 2 -
failure_cost 2.99072e+08 reward
restart_steps 3600 steps
rho_floor_tracking 0.704494 reward
rho_floor 0.704494 reward
figure8_altitude_amplitude 200 m
initial_z_dot 0 m/s
initial_x_dot 200 m/s
initial_y_dot 0 m/s
initial_theta_dot 0 deg/s
initial_theta 0 deg
initial_phi 0 deg
initial_phi_dot 0 deg/s
initial_heading 0 rad
initial_power 1 -
initial_stick 0 deg
initial_aileron 0 deg
wind_x 0 m/s
wind_y 0 m/s
wind_z 0 m/s
turbulence_sigma 1.2 m/s
turbulence_theta 0.2 1/s
wind_shear_x 0 1/s
wind_shear_y 0 1/s
shear_ref_alt 0 m
slot_tolerance 60 m
heading_tolerance 0.5236 rad
min_separation 25 m
max_slot_error 1500 m
slot_precision_floor 3 m
e_floor_slot 3 m
e_tol_slot 0 m
lead_leg_seconds 60 s
follower_spawn_noise 40 m
w_track 0.6 -
w_lead 0.4 -
